Information

Safety Instructions and Hints

Functional Safety

The functional safety of a gas spring comes mainly from the smooth piston rod surface and the seals that keep the gas pressure on the inside.

• Do not subject gas springs to bending stresses.
• Do not install gas springs that have been damaged in after-sales mechanical processing

Welding on the gas spring, as well as contamination or paint on the piston rod can cause device failure. Avoid:

• modifications and manipulations
• impacts
• tensile stress
• heating
• painting
• removal of the imprint

Be on the safe side: Do not install defective or improperly altered products.

Mounting Orientation
If possible, install gas springs so that the piston rod points down in the inactive state – unless they were designed for non-orientation specific installation. This will ensure optimum lubrication of the guide and sealing system at all times.

No Jamming
For a long service life, gas springs must not jam or be subjected to bending or lateral forces. We offer suitable end fittings, such as angle joints. They will ensure non- jamming alignment.

Temperature Range
LIFTX gas springs are designed for a default temperature range of -20°C to +70°C.

Application
In their technical design, gas springs must be customized for special applications – on the basis of specifications and drawings.

Life and Maintenance
Gas springs are maintenance-free! They do not require greasing or lubrication. They are designed for their corresponding applications and will work flawlessly for many years.

Transportation and Storage
Store gas springs with the piston rod pointing down. Actuate the gas spring after 6 months of storage. Avoid damage: Do not transport gas springs as bulk material. Make sure not to contaminate gas springs with thin packaging film or adhesive tape.

Disposal
When gas springs are no longer needed, they should be disposed of in an environmentally correct manner. For this purpose they should be drilled open, the compressed nitrogen gas bled, and the oil drained.

Recycling

Directions for disposal in general.

Please Note:

• Oil must not enter the water table or soil
• Do not dispose with house waste
• Gas springs are oil filled
• Gas springs may not be opened
• Gas springs may not be heated above 80°C
• Gas springs are under pressure

WARNING: The piston rod could detract as the gas leaks out! Please prevent accidents and take notice of environmental protection regulations and act accordingly to your local Occupational Safety regulations. Wear safety glasses!

• Tightly hold the gas spring in a vice
• Protect the area against spraying oil and flying swarf during drilling

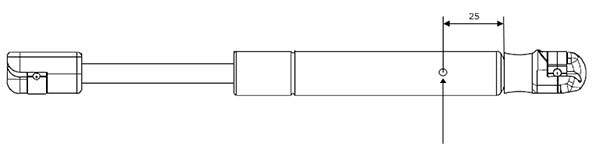

• Bore a hole, so that the gas can leak out, using a 3mm drill (see arrow below)
• Drill 25 mm from cylinder base as shown below
• The hole should be 5 mm deep

By moving the piston rod in and out, the oil is pumped out of the gas spring cylinder. If it is still not possible to move the piston rod, drill a second hole on the opposite side, 30 mm from the lead end.
